Orchestration canvas

The orchestration canvas is where you build and manage campaign logic visually.

It is available in the orchestration view of a campaign and allows you to connect activities, targeting, and control logic in one place. This page explains how to work with the canvas itself.

Accessing the campaign canvas

You can access the campaign canvas by opening a campaign and switching to orchestration view. If you are creating a new campaign from orchestration view, you land directly on the empty canvas.

The canvas shows the full structure of a campaign, including:

• Activities
• Segmentation and targeting
• Control and operator logic
• Connections between blocks

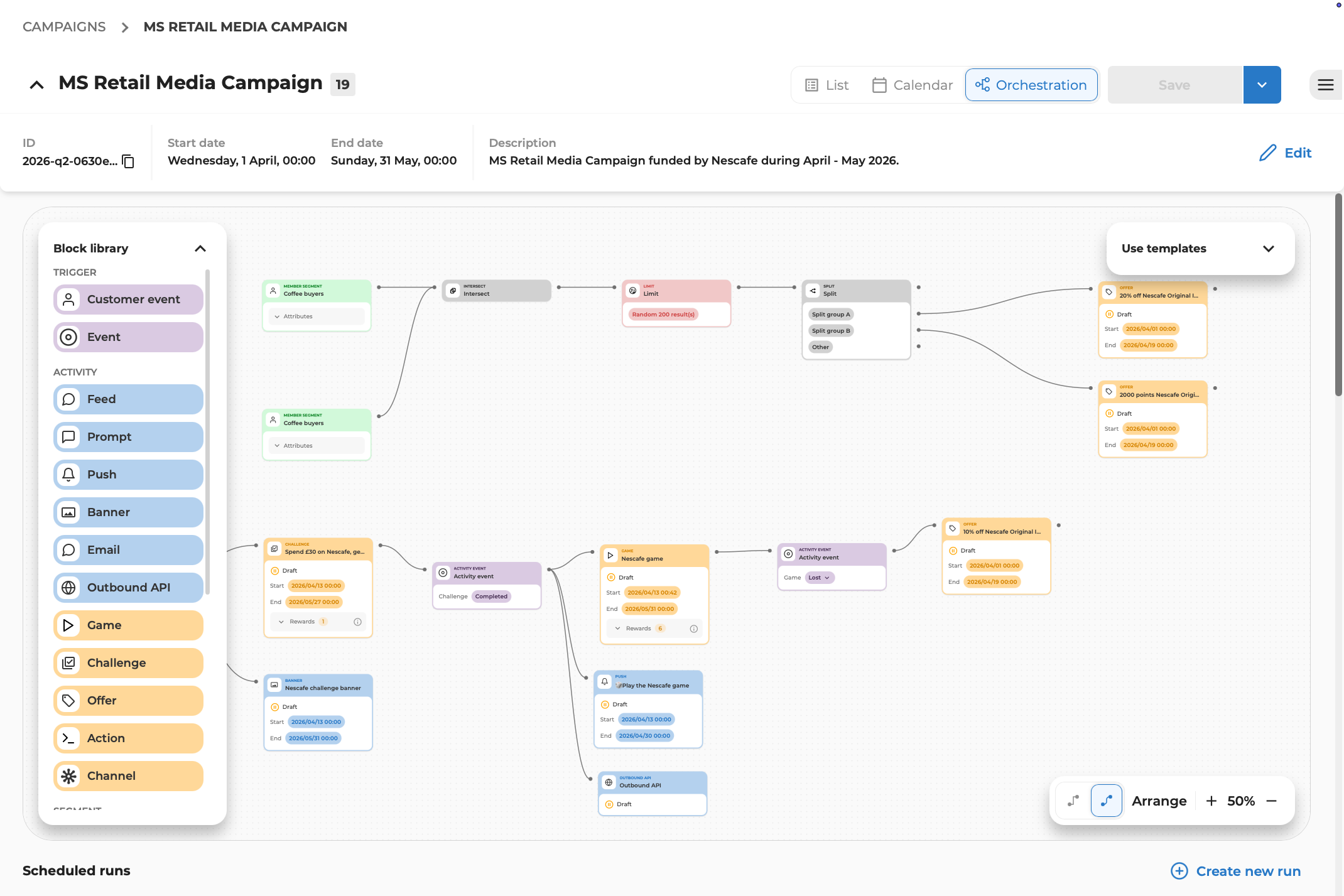

Canvas layout

The canvas consists of three main areas:

• Canvas workspace
  The central area where blocks are placed and connected.

• Block library
  Located on the left side. Contains the available blocks that can be dragged onto the canvas.

• Top actions
  Located at the top of the page. Used to save, arrange, and execute the campaign.

Building on the canvas

You build campaign logic by placing and connecting blocks on the canvas.

You can:

• Drag blocks from the block library onto the canvas
• Connect blocks to define flow and dependencies
• Select a block to view or edit its configuration
• Remove blocks or connections when no longer needed

Editing blocks

• Double-click a block to open its configuration
• Select a block and press Delete to remove it
• Select a connection and press Delete to remove the connection
• Use Ctrl + C and Ctrl + V to duplicate blocks

Navigating the canvas

To move around the canvas:

• Drag the canvas to pan
• Hold Ctrl and use the mouse wheel to zoom in or out

Saving changes

Changes on the canvas are not saved automatically. To save changes made on the canvas, click Save in the top menu.

If you navigate away without saving, changes will be lost.

Canvas actions

The top menu provides actions related to the campaign canvas:

• Copy
  Creates a new campaign with the same configuration and access level.

• Arrange
  Automatically reorganises blocks and connections to improve readability.

• Count
  Executes the campaign in count mode to calculate results without allocating activities.

• Simulate
  Executes the campaign in simulation mode. Activities that deliver content to members are skipped.

• Execute
  Executes the campaign normally, allocating activities as configured.

• Save
  Saves the current campaign configuration.

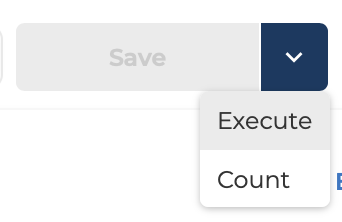

Enabling execution actions

Execution actions are enabled based on which blocks are present in the campaign.

If required blocks are missing, actions such as Execute, Simulate, or Count are disabled. Tooltips on the action buttons explain what needs to be added.

• To enable Execute and Count the campaign must include at least one Member segment block or Seed block
• To enable Simulate the campaign must include a Personal Offers block and at least one Member segment block or Seed block. Simulation is only available when the campaign contains activities and targeting that can be meaningfully simulated.

Why execution may be disabled

Execution actions are disabled when the campaign does not yet define:

• who the campaign should run for, or
• which activities should be evaluated or simulated

This helps prevent running incomplete or invalid campaign configurations.

Once the required blocks are added to the canvas, the relevant execution actions become available automatically.

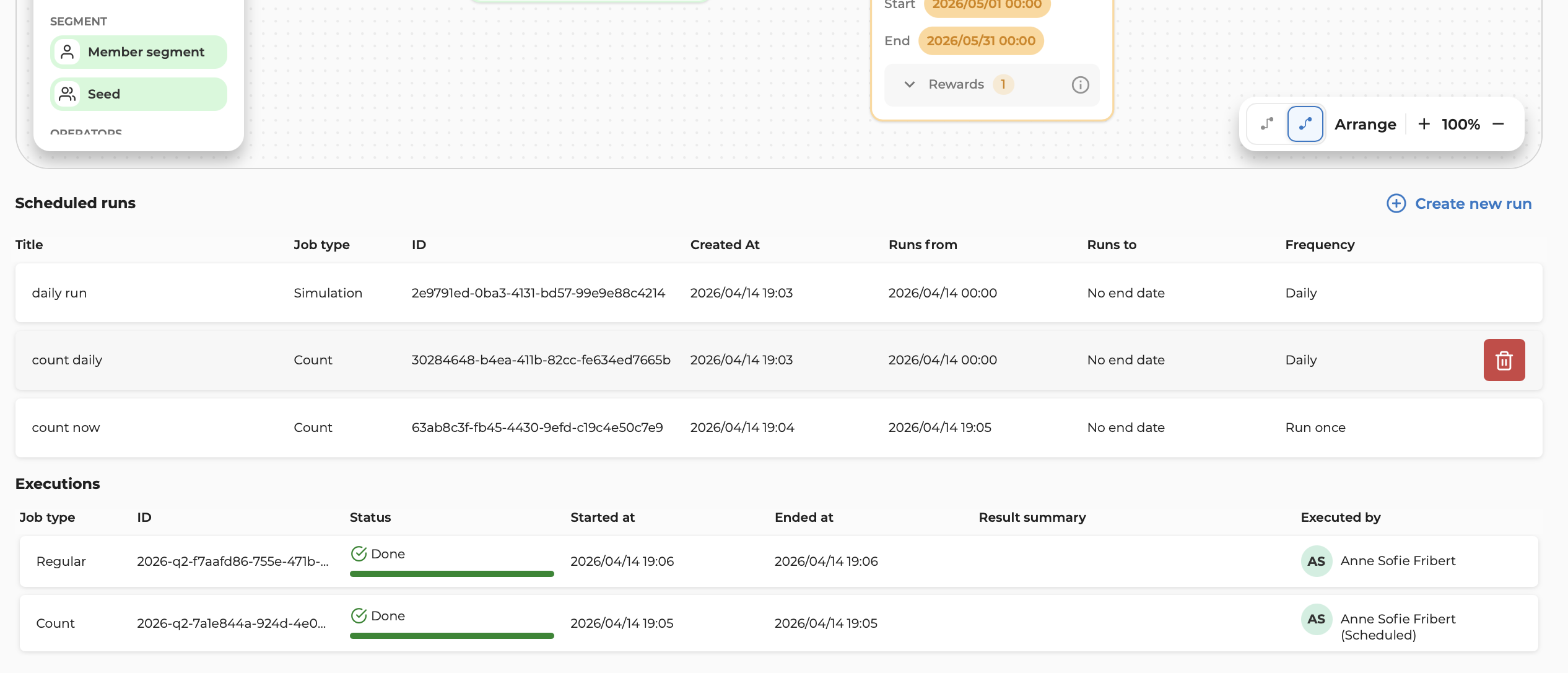

Execution results

Execution results are displayed below the canvas.

The execution list shows:

• execution type (count, simulation, regular)
• execution status
• start and end time
• who triggered the execution

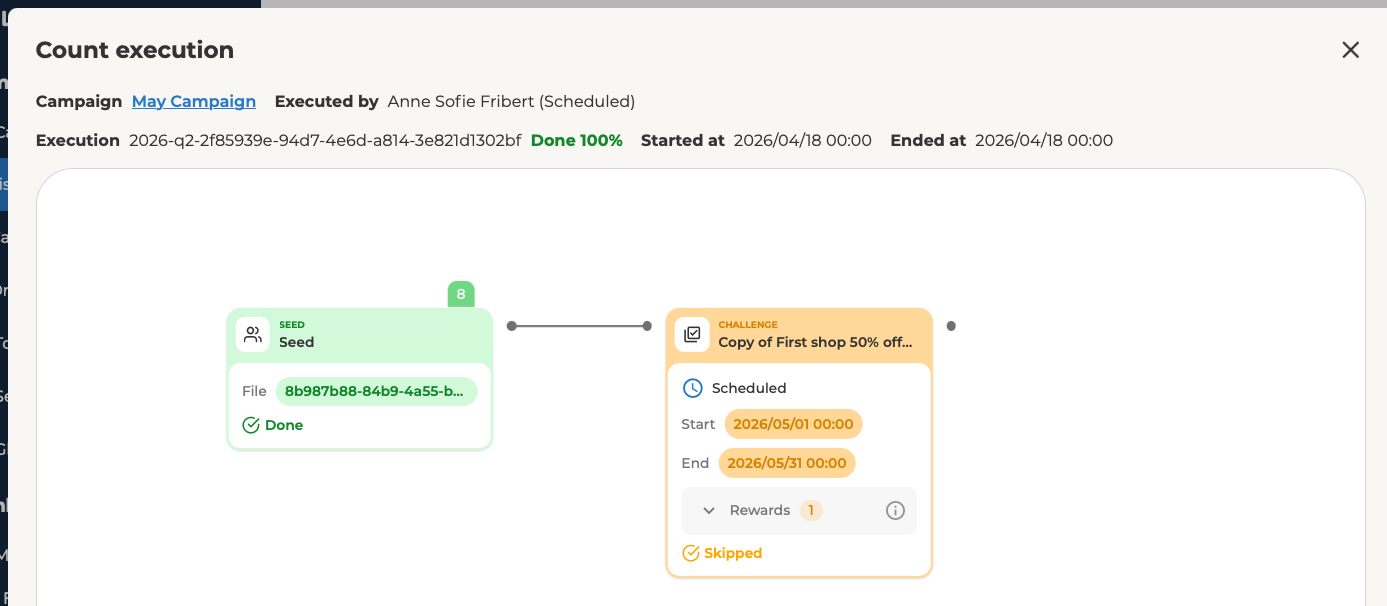

You can open an execution to see:

• when each block started and completed
• available output from blocks that produce results

Scheduling and event-based triggers

From the canvas you can also schedule executions or set up event-based triggers. Scheduled executions are listed below the canvas alongside execution results.

For full details on scheduling and event-based triggers, see Campaign execution and scheduling.

Using the canvas effectively

The campaign canvas is most useful when:

• activities need to be targeted to specific member groups
• campaigns should run repeatedly or automatically
• activities depend on each other
• campaigns should react to events

For simple campaigns with standalone activities and fixed dates, you may not need to use the canvas.

Next steps

To continue, see the following sections:

• Campaign blocks overview to understand available blocks and what they do
• Create and edit campaign to learn how to add activities and work with the canvas
• Campaign execution and scheduling to set up scheduled or event-based runs
